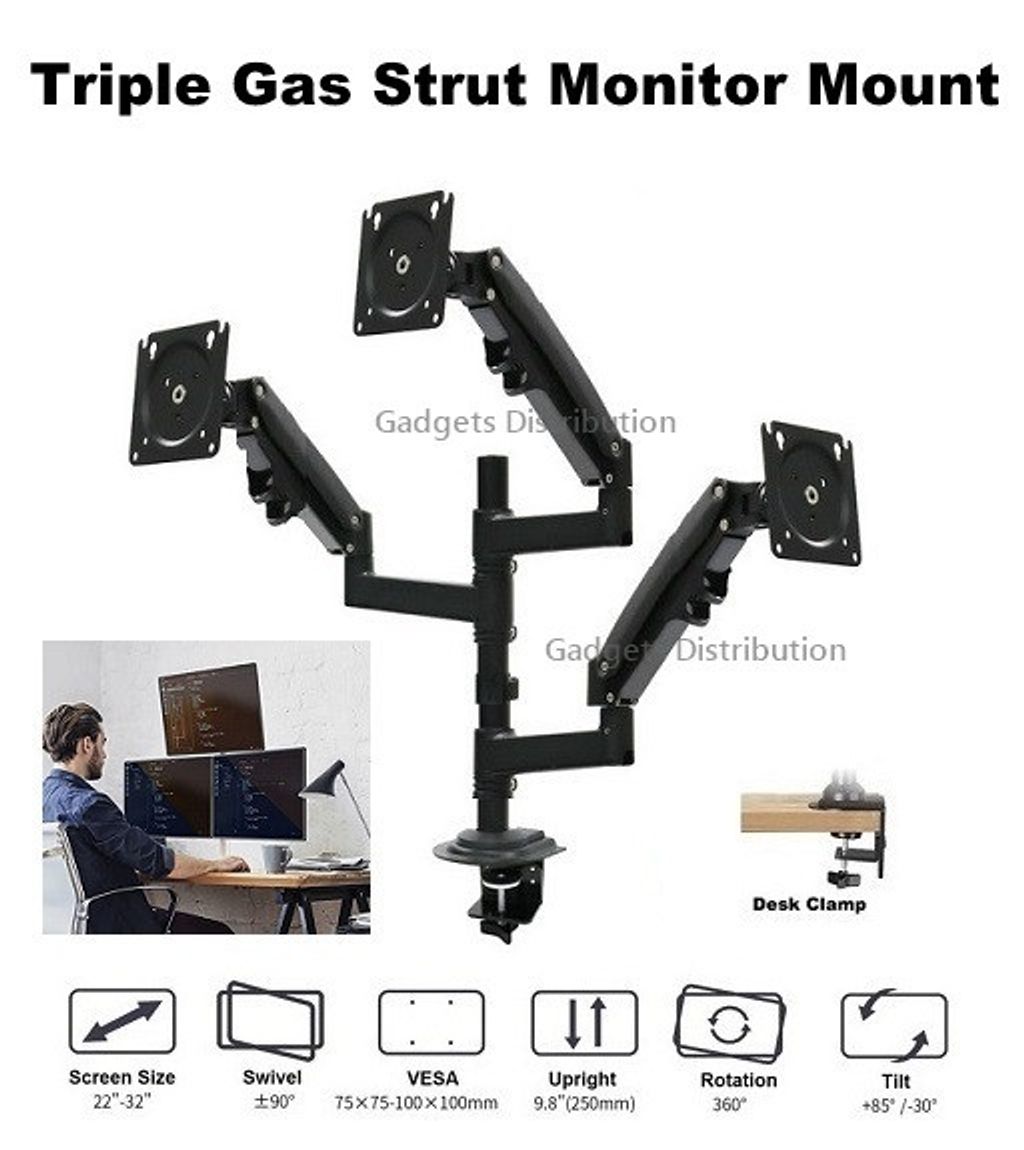

SM P43-3G 22 - 32 inch 3 Triple Three 3 in 1 Gas Strut TV Arm Monitor Desktop Mount Bracket 2914.1

SM P43-3G 22 - 32 inch 3 Triple Three 3 in 1 Gas Strut TV Arm Monitor Desktop Mount Bracket 2914.1

Specifications:

Model: SM P43-3G

Color: Black

Material: Alu Alloy + Steel

Monitor Mount Fits: Most 22 to 32 inch screen flat panel TV

(Note: Supported screen size is provided as a reference only)

VESA Compliance: 75*75 / 100*100mm

Upright Lift Distance: 250mm

Maximum Extension: 550mm

Pole Height: 43cm

Rotation: 360°

Swivel: ±90°

Tilt Angle: +85° to -30°

Load Capacity: 2kg to 9kg (Monitor)

Table Thickness: 10-73mm (desk clamp)

VESA:

When we refer to VESA sizes we are referring to the standard used to measure the hole pattern on the back of your Display.

If you do know your VESA pattern you can simply measure the distance side to side and top to bottom on your display. The distance in millimeters is the Vesa Hole Pattern.

***Kindly note that we are not able to offer any support or instruction on its usage, thank you***

Package Includes:

1 x Gas Strut Triple Mount

1 x User Manual

1 x Some installation accessories

Stock No.: 2914.1
